Presses
Joos veneer press
Used hydraulic veneer press with two electrically heated platens, 2500 x 1100 mm working area, 4 pressing cylinders and 380 mm daylight.
Product code PM1057
About this machine

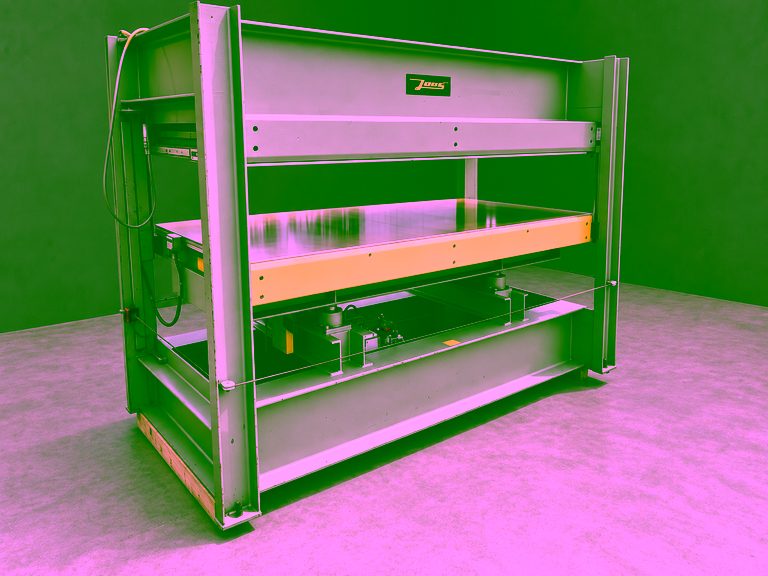

This used Joos veneer press is a hydraulic hot press for veneering and for pressing panels with HPL and multilayer plywood.

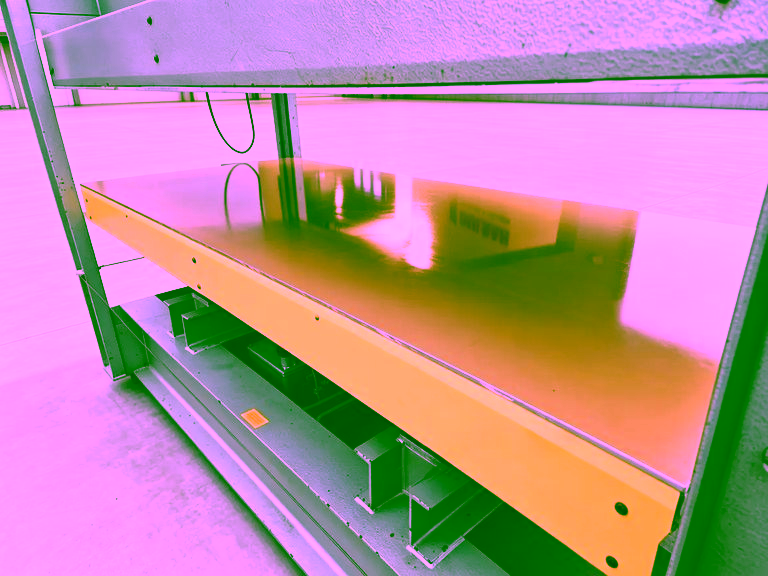

The working length is 2500 mm and the working width 1100 mm. Both platens, upper and lower, are electrically heated. The machine weighs approx. 3500 kg.

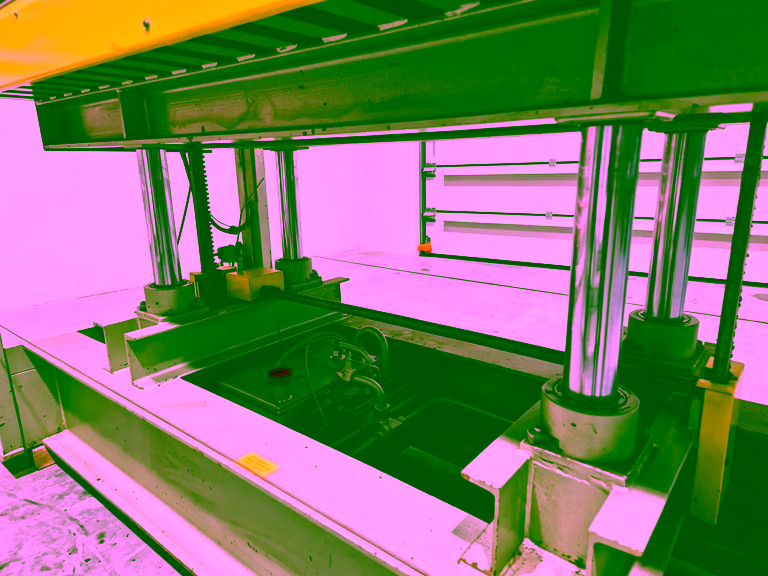

This machine is fitted with two heated platens (upper and lower), a control thermostat with thermometer for each platen, a safety thermostat, a push-button box for operating the press and 4 pressing cylinders; the daylight between the platens is 380 mm.
Condition: used machine in good working order. The year of manufacture, the location and the identification data of the machine, as well as any technical data not given here, are specified in the quotation.
Technical data
| Press type | Hot press |
|---|---|
| Working length | 2500 mm |
| Working width | 1100 mm |
| Number of pressing cylinders | 4 |
| Press platens: dimensions and number | 2 heated platens (upper and lower) |
| Clear opening between platens | 380 mm |
| Heating: type and temperature | electric, upper and lower platen |
| Control system | control thermostat and thermometer for each platen; safety thermostat; push-button box for operating the press |
| Machine weight | approx. 3500 kg |
