Sliding table saws
Format-4 sliding table saw
Used sliding table saw with 3200 mm cutting length, 1300 mm cutting width, Ø 400 mm blade tilting to 45°, scoring unit and motorised blade height and tilt adjustment.
Product code PM1047
About this machine
This used Format-4 sliding table saw is intended for sizing panels and for ripping and crosscutting solid wood. It processes solid wood, particleboard, MDF and composite materials.
The machine has a cutting length of 3200 mm and a cutting width of 1300 mm at the rip fence. It takes a Ø 400 mm saw blade tilting 0°–45°, with a maximum cutting height of 133 mm, and has 3 speeds (3500 / 4500 / 5500 rpm). The main motor has 7.35 kW. The machine has a scoring unit; the blade height and tilt are adjusted electrically, with digital displays for height and tilt angle.
The sliding table runs on roller guidance. This machine is fitted with a rip fence with micrometric adjustment and digital display, a crosscut fence with digital display and a suspended saw blade guard on a support arm with extraction connection. The machine weighs 900 kg.
Condition: used machine in good working order. The year of manufacture, the location and the identification data of the machine, as well as any technical data not given here, are specified in the quotation.
Technical data
| Sliding table length | cutting length 3200 mm |
|---|---|
| Cutting width at rip fence | 1300 mm |
| Main saw blade: maximum diameter / bore | Ø 400 mm |
| Cutting height at 90° / 45° | max. 133 mm |
| Main saw blade tilt | 0°–45° |
| Main saw spindle speed | 3500 / 4500 / 5500 rpm |
| Main motor power | 7.35 kW |
| Scoring unit | yes |
| Sliding table guidance and locking | roller guidance |
| Crosscut fence | with digital display |

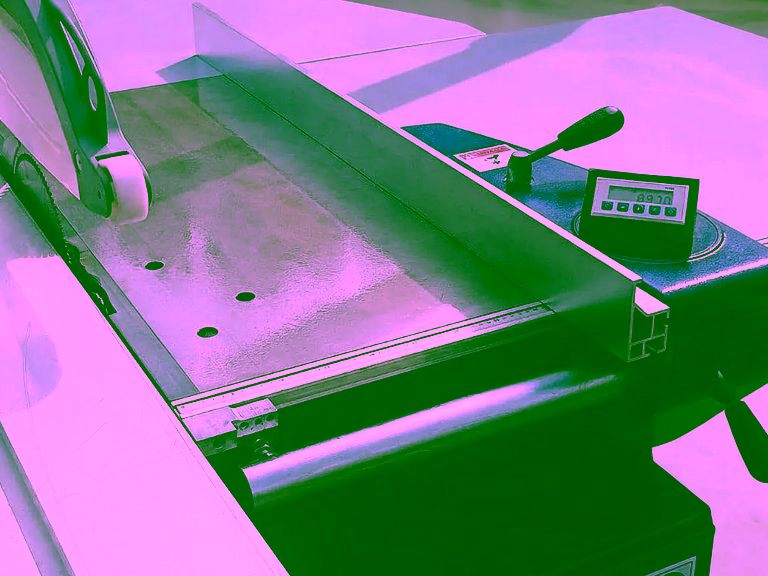

| Rip fence | micrometric adjustment; digital display |

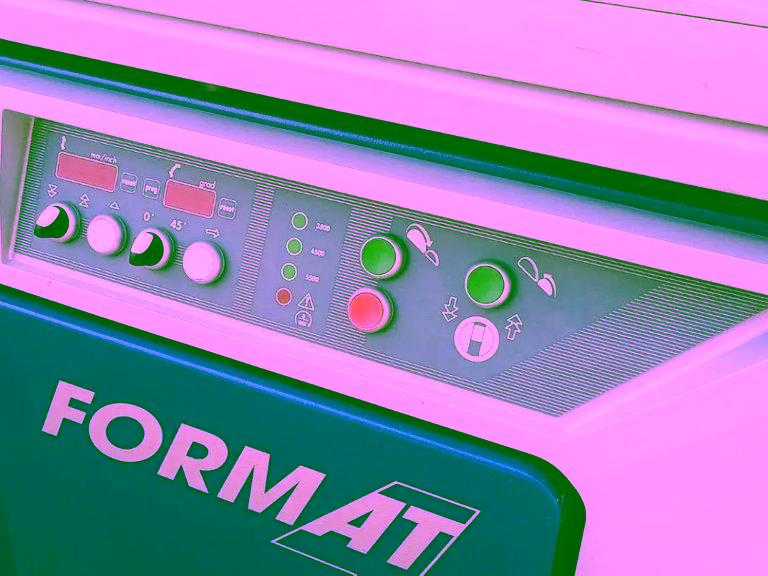

| Motorised adjustments and displays | motorised blade height and tilt adjustment; digital displays for height and tilt angle |
| Saw blade guard | suspended guard on a support arm, with extraction connection |
| Net weight | 900 kg |
