Edge banding machines
Brandt automatic edge banding machine
Used automatic edge banding machine for panels up to 50 mm and edgebanding 0.4–3 mm, with pre-milling, end trimming, fine trimming, scraping and buffing.
Product code PM1059
About this machine
This used Brandt automatic edge banding machine applies edgebanding to panels in woodworking workshops. It processes panels up to 50 mm thick with edgebanding 0.4–3 mm thick.

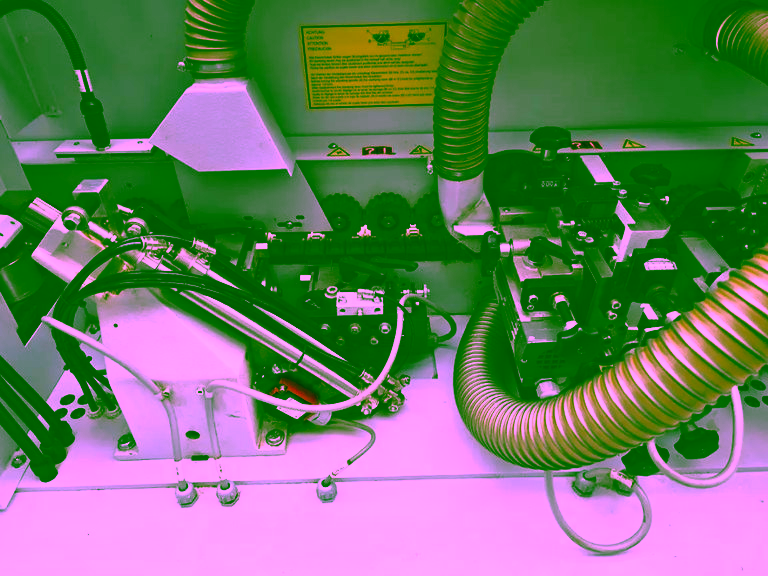

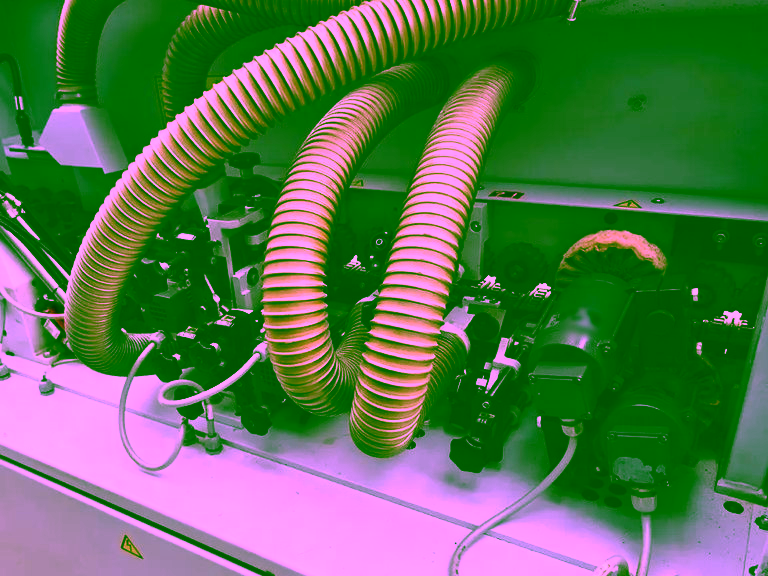

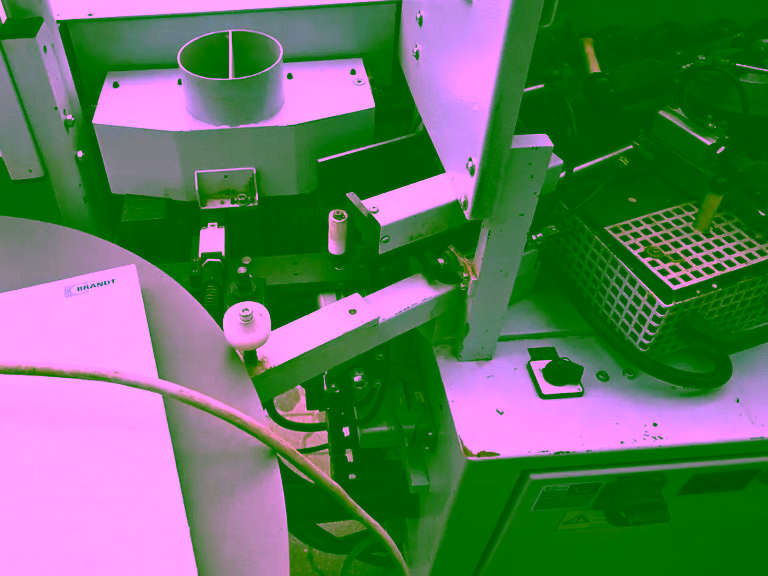

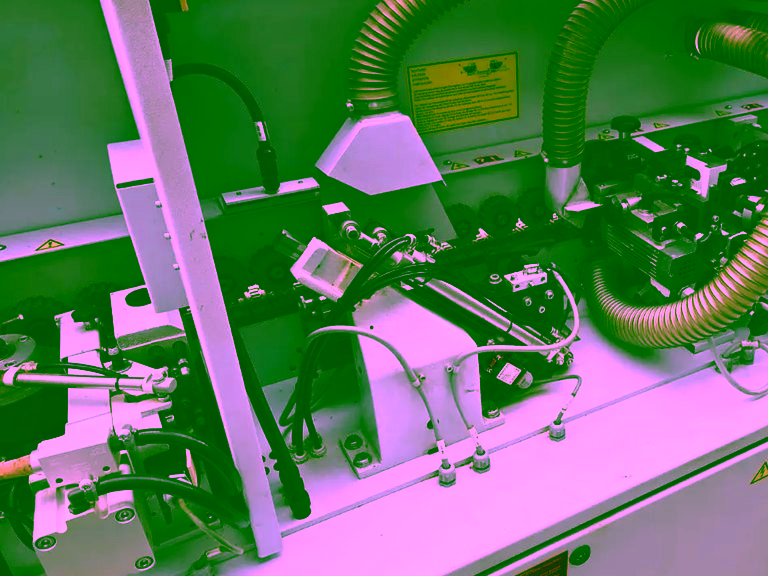

The panel passes through pre-milling, then the edgebanding is glued and pressed on. Finishing is done by end trimming saws at the front and rear, a fine trimming unit, a scraper and a buffing unit.
This machine is fitted with a glue pot, a top pressure beam with rollers, an edgebanding coil table and a control panel with digital displays.
Condition: used machine in good working order. The year of manufacture, the location and the identification data of the machine, as well as any technical data not given here, are specified in the quotation.
Technical data
| Panel thickness | max. 50 mm |
|---|---|
| Edgebanding thickness | 0.4–3 mm |
| Pre-milling | yes |
| Gluing system | glue pot |
| Edgebanding feed | edgebanding coil table |
| End trimming | end trimming saws, front and rear |
| Longitudinal trimming (rough / fine) | fine trimming unit |
| Scraping (profile / glue) | scraper |
| Buffing | buffing unit |
| Top pressure system | top pressure beam with rollers |
| Control system | control panel with digital displays |
